GD-100
Solvent Evaporators |
| |
Simple,
rugged, parallel solvent evaporator for sample enrichment |
| |
| The GD-100 solvent evaporator
is a multi-sample enrichment device consisting
of a heating block, a manifold having both
gas purging and vacuum functions using multiple
piercing needles, and flow and temperature
controller. Tubes of solvent-excessive samples
are placed into wells of the heating block;
whereby solvent vapor in each tube is purged
out by inert gas flow through needles and
vented by vacuum. Thanks to innovative design,
the device is easy to use, reliable, safe,
and economic. |
|
|
|
| |
| |
 Product
features: |
| ， Combination of heating and vacuum for
speedy evaporation of a variety of solvents
at relative lower temperature (safe, faster
and better for unstable compounds) |
| ， Simple operation, no programming set-up
needed |
| ， Adjustable gas pressure and flow |
| ， Multi-size block interchangeable, accepts
tubes OD from 11 to 29mm |
| ， Optional automatic shutoff, for safe and
fast parallel enrichment of various samples
|
| ， Small footprint, only 18(W)x16(D)inch
bench area |
| ， Broad customization configurations |
| ， Economic and reliable. |
|
 |

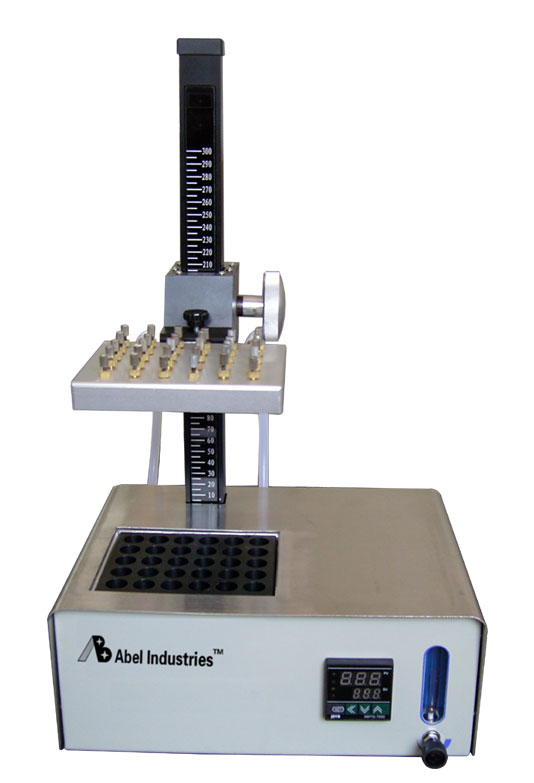

1.Height post
2.Vacuum vent
3.Needle piercing gas manifold
4.Sample tubes
5.Temperature controller
6.System flow controller |
Multi-Needle manifold with individually controlled
flow |
|
| |
| Technical
specifications: |
| Dimension |
18(W)x20(H)x16(D) inch
45(W)x50(H)x40(D)cm |
|
Weight |
20lb/10kg |
| Power
|
90-120VAC, 50-60Hz, 500VA
|
| Mount |
Bench stand |
|
Working environment |
4 to 40＜C, Humidity <80%
|
| Well
plate dimension |
5(W)x4.5(D)x2(H)inch127(W)x110(D)x50(H)mm
|
| Number
of Well Plate |
12, 15, 30, 48 |
| Tube
OD |
11-29mm |
| Tube
length |
125-200(mm) |
| Temperature
|
RT-150＜C |
| Temperature
accuracy |
+-1＜C |
| Gas
pressure |
30psi (2bar) max |
| Gas
flow |
0-5liter/min |
| Needle
|
Stainless steel, 1.6(OD)x150(L)mm
|
| Gas/vacuum
connection fitting |
Hose barb 1/8 flow port
|
|
Auxiliary vacuum |
5-12psia, 200-700mmHg |
|
|
| |
| Order
Information: |
| Description
|
Part
Number |
Price
($) |
Solvent
evaporator, including a multi-needle
manifold, inert gas flow module, heater
& controller, 120VAC, 1year limited
warranty.
Order multi-well blocks and manifold
plates separately! |
GD-101(regular
system) |
1950 |
Solvent
evaporator, including individual flow
controlled needle manifold, heater &
controller, 120VAC, 1year limited warranty
Order multi-well blocks and manifold
plates separately! |
GD-102-xx,
xx is number of wells of block |
2200 |
| Solvent
evaporator, 48 or 96well plate format,
including purge manifold, inert gas
heating & controller, 120VAC, 1year
limited warranty |
GD-103-48
GD-103-96 |
2200
2200 |
| Block:
48-well |
PD-48 |
155 |
|
Block: 30-well |
PD-30 |
155 |
| Block:
15-well |
PD-15 |
155 |
| Block:
12-well |
PD-12 |
155 |
| Customized
block, aluminum, specify No. of wells(xx)
and well diameter (yy,mm) |
PD-00-xx-yy
|
Inquiry |
| Manifold
plate, specify No. of well (xx) |
MP-00-xx
|
199
|
| Accessory,
needle, 30/pk |
PD-01 |
45 |
| Accessory,
silicone pad, 5/pk |
PD-02
|
70 |
| Accessory,
glass tube, 15mm OD x150mmL, 30/pk |
PD-03 |
45 |
| Accessory,
glass tube, 18mm OD x150mmL, 15/pk |
PD-04 |
55 |
| Diaphragm
vacuum pump, 24''Hg, 24L/min |
PV-01 |
750 |
|
|
| |
| Customization:(contact
for price and availability) |
， Dimension of heating zone/well block
， Optional magnetic stirring
， Automatic shutoff w/ liquid level set |
|
| |
| Applications: |
， Parallel sample enrichment for chromatography
， Synthesis
， molecular biology and other general applications
in pharmaceutical
， medical and environmental laboratories.
|
|
| |
| |
| |
| |
|
|
